PP FTTH Drop Cable Buckle Type Splice Distribution Box, 16 Ports Splice Box for 1X16 Splitter
FTTH Drop Cable 16 Ports Fiber Optic Cable Joint Box, Fiber Optic Junction Box Enclosure
FDB0216F is widely used in passive optical fiber to the home network. This distribution box is made of high strength engineer plastic, ensure the box can be used in harsh environment.The compact size and flip-over cover bring easy operation as well as complete function.The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier. It is designed to prevent from operation damage.
IP68 Waterproof Fiber Optic Box Specification
| Dimension (mm) | 380×245×130 | Max. capacity(Single fiber) | 12 cores |
| Weight (kg) | 4.5~5 | Sealing type | Mechanical |
| Cable ports | 1 input cable port for un-cut cable from diameter from10~17.5mm. 2 output cable ports for cable diameter from 8~17.5mm.
16 output cable ports for cable diameter less than 4mm. | Single splice tray capacity(Single fiber) | 48 cores |
| Splice tray quantity | 4 pcs | | |
16 Ports Fiber Optic Distribution Box Parts list
Main kits
| S/N | Description | Quantity | Note |
| 1 | Lid | 1 | 337(L)×242(W)×63(H)mm. |
| 2 | Base | 1 | |
| 3 | Sealing ring | 1 | Box sealing |
| 4 | 8202 sealing parts | 16 | Sealing cable ports |
| 5 | Splice tray | 4 | For cable splicing and storage |
| 6 | Splice tray cover | 1 | |
| 7 | Splice tray bandage | 1 | Fixing several splice trays |
| 8 | Fastener bolt | 2 | Fixing lid and cover of closure |
| 9 | Buckle | 4 | Fixing lid and cover of closure |
| 10 | Tight nuts | 16 | Sealing soft cable ports |
| 11 | Tight tool | 1 | Special for tight the nuts |
| 12 | Cable fixing panel | 1 | Fixing un-cut cable |
| 13 | Adaptor installation panel | 4 | An adaptor panel for 6 SC simplex adaptors |
| 14 | Splice tray bracket | 1 | Install 4 splice trays |
| 15 | Top cover stopper | 1 | Limit top cover |
| 16 | Plastic nuts | 2 | Fixing cable |
Splitter Distribution Box Standard parts
| S/N | Description | Quantity | Note |
| 17 | Wall mounting kit | 1 | For wall mounting |
| 18 | Expansion anchor bolt | 2 | Parts of the wall mounting kit |
| 19 | Hexagon bolt | 2 | Parts of the wall mounting kit |
| 20 | Nylon tie(3*120mm) | 12 | Fixing cable |
| 21 | Fusion sleeve(Φ1.0*60mm) | According to the fiber cores. | Cable splicing |
| 22 | 0.2m coil tube | 1 | Protect the fiber |
| 23 | Insulation tape | 1 | Accessorial fixation |
| 24 | 0.5m EVA tube | 1 | Protect fiber |
| 25 | Drier | 1 | |
| 26 | M6 internal hexagonal wrench | 1 | Tool to open the box |
| 27 | 14# grommet | 2 | For cable dia. From 12-17.5mm |
| 28 | 41# grommet | 2 | For cable dia. From 8-12mm |
| 29 | Plastic plug | 4 | Seal the cable port |
| 30 | Iron spanner | 1 | Tool |

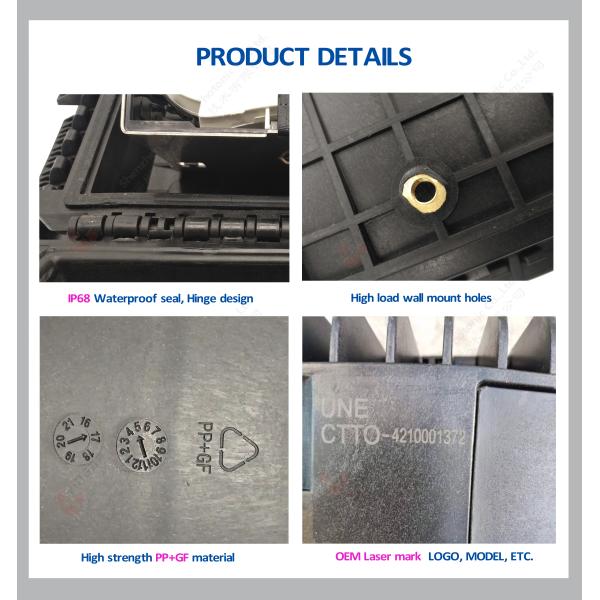

FDB0216F (FATC-001) side with 4pcs buckles, wall mount or pole mount steel sheet with screws at back, all box is sealed with waterproof rubber ring which ensure IP68 waterproof level, PP+GF material, high strength and high impact performance.
Optical Fiber Jounction Box have 2 types of cable inlets, cable entry:1uncut pors, 2round ports, cable outlets:16pcs for FTH drop cable, especially can use HUAWEI OpticTap SC/APC connectors.
